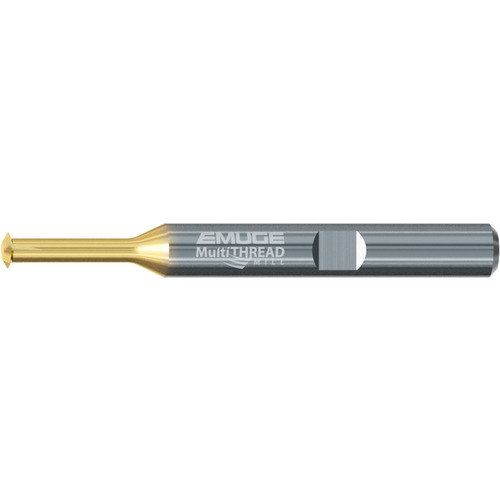

Thread Mill; #10 - 24 × 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TIN-T21
Thread Mill; #10 - | 24 | 32 | ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiN ; Series GFS23105
| Thread Size | #10 | Coating | TiN |
| Threads per Inch (TPI) | | 24 | 32 | | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | UNC | UNF | Applicable Material | | Universal Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.136″ | Series/List # | GFS23105 |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Length Group | 2xD |
| Coolant Supply Property (CSP) | External | Tool Type | Thread Mill |
| Shank Type | Weldon |
Product Features
| Remarks | • For economical production of internal threads in a wide range of materials • Large core diameter with high profile correction for exacting threads • Emuge proprietary TIN-T21 PVD coating developed for additional tool life • Optimized cutting geometry that works well in a job shop environment with multiple materials. | Country of Origin | Germany |
Shipping Info
Package Weight
0.048
