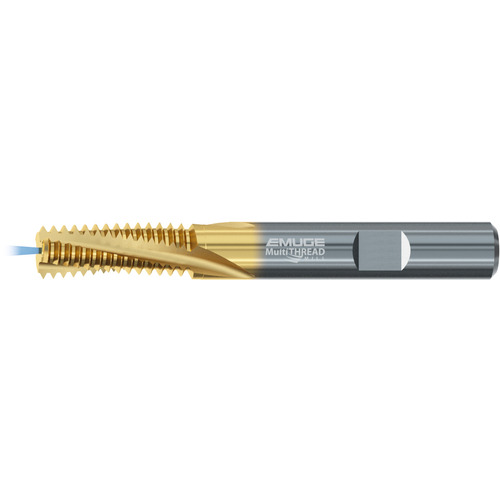

Thread Mill; M12 × 1.75 mm × 3/8 Shank Dia. × 3″ OAL ; Carbide ; TIN-T21″
Thread Mill; M12 × 1.75 mm × 3/8″ Shank Dia. × 3″ OAL ; Carbide ; TIN-T21
| Thread Size | M12 | Coating | TiN |
| Thread Pitch (TP) | 1.75 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | Metric | Applicable Material | | Universal Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.371″ | Series/List # | GFR35105 |
| Overall Length (OAL) | 3″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
| Shank Type | Weldon |
Product Features
| Remarks | • For economical production of internal threads in a wide range of materials • Large core diameter with high profile correction for exacting threads • Emuge proprietary TIN-T21 PVD coating developed for additional tool life • Optimized cutting geometry that works well in a job shop environment with multiple materials. | Country of Origin | Germany |
Shipping Info
Package Weight
0.127
