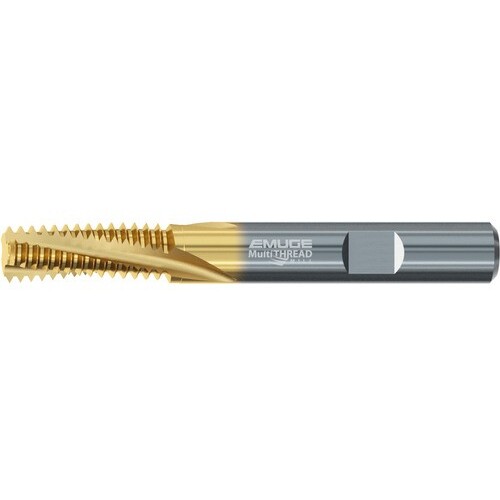

Thread Mill; 1/2″ - 13 × 3/8″ Shank Dia. × 3″ OAL ; Carbide ; TIN-T21
Thread Mill; 1/2″ - 13 ; 3/8″ Shank Dia. × 3″ OAL ; Carbide ; TiN ; Series GFR15105
| Thread Size | 1/2″ | Coating | TiN |
| Threads per Inch (TPI) | 13 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | UNC | Applicable Material | | Universal Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.371″ | Usable Length (LU) | 1.036″ |
| Overall Length (OAL) | 3″ | Series/List # | GFR15105 |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External | Length Group | 2xD |
| Shank Type | Weldon | Tool Type | Thread Mill |
Product Features
| Remarks | • For economical production of internal threads in a wide range of materials • Large core diameter with high profile correction for exacting threads • Emuge proprietary TIN-T21 PVD coating developed for additional tool life • Optimized cutting geometry that works well in a job shop environment with multiple materials. | Country of Origin | Germany |
Shipping Info
Package Weight
0.132
