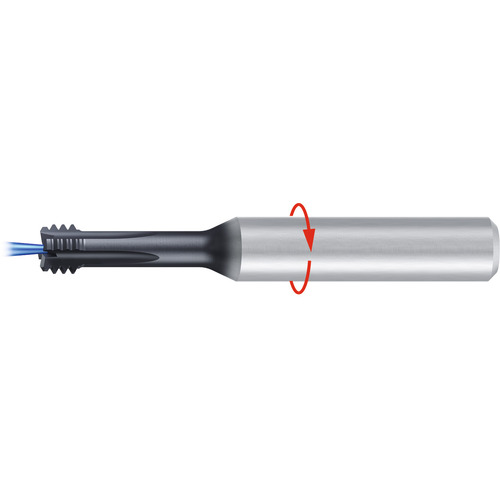

 ZBGF-HCUT-2,5xD-IKZ-HA-ALCR-T42/(R) ZBGF-HCUT-2,5xD-IKZ-HA-ALCR-T42_Enlarge.jpg)
Thread Mill; 1/4″ - 20 × 6 mm Shank Dia. × 60 mm OAL ; Carbide ; Series GF74370B
Thread Mill; 1/4″ - 20 ; 6 mm Shank Dia. × 60 mm OAL ; Carbide ; AlCr ; Series GF74370B
| Thread Size | 1/4″ | Shank Type | Round |
| Threads per Inch (TPI) | 20 | Coating | AlCr |
| Thread Standard | UNC | Application | | Drilling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Hard Materials | |
| Cutting Diameter (DC) | 4.5 mm | Flute Helix Angle (FHA) | 10 Degrees |
| Overall Length (OAL) | 60 mm | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 | Series/List # | GF74370B |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Solid Carbide Thread Mills |
Product Features
| Remarks | • Solid carbide circular thread mill with 4 rows of cutting teeth. • Flute design for drilling, roughing and finishing in a single profile. • TIALN-T46 coating for additional heat and wear resistance. • For high tensile strength materials, 44 to 66 HRC. | Country of Origin | Germany |
Shipping Info
Package Weight
0.08
