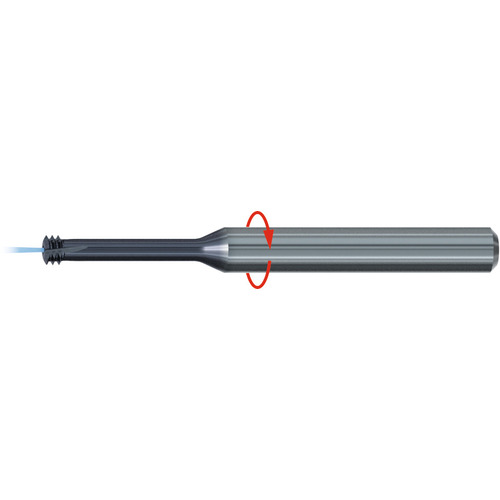

GF2BA729.5003 THREAD MILL
Thread Mill; #4 - 40 ; 3 mm Shank Dia. × 41 mm OAL ; Carbide ; TiAlN ; Series GF2BA729
| Thread Size | #4 | Coating | TiAlN |
| Threads per Inch (TPI) | 40 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | UNC | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Flute Helix Angle (FHA) | 10 Degrees |
| Cutting Diameter (DC) | 2.15 mm | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 41 mm | Series/List # | GF2BA729 |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Solid Carbide Thread Mills |
| Shank Type | Round |
Product Features
| Remarks | • Solid carbide circular thread mill with left hand flute design for additional stability. • Three tooth design with roughing and finishing in a single profile. • Full bottoming threads to within 1 pitch • For aerospace and exotic materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.035
