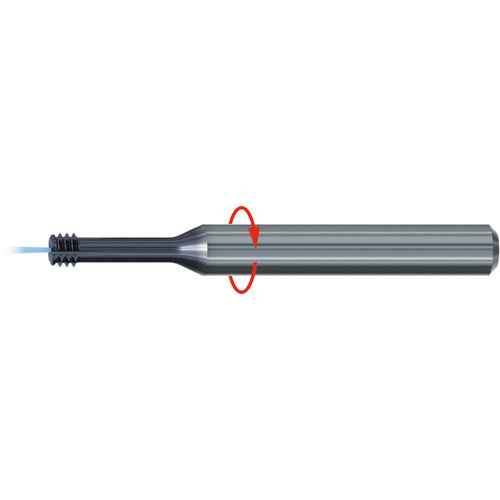

M8X1.25 THREADMILL TIALN
Thread Mill; M8 × 1.25 mm ; 8 mm Shank Dia. × 60 mm OAL ; Carbide ; TiAlN ; Series GF283729
| Thread Size | M8 | Shank Type | Round |
| Thread Pitch (TP) | 1.25 mm | Coating | TiAlN |
| Thread Standard | Metric | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Applicable Material | | Hard Materials | |
| Cutting Diameter (DC) | 6.5 mm | Flute Helix Angle (FHA) | 10 Degrees |
| Overall Length (OAL) | 60 mm | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 4 | Series/List # | GF283729 |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Solid Carbide Thread Mills |
Product Features
| Remarks | • Solid carbide circular thread mill with 4 rows of cutting teeth. • Flute design for roughing and finishing in a single profile. • TIALN-T46 coating for additional heat and wear resistance. • For high tensile strength materials, 44 to 66 HRC. | Country of Origin | Germany |
