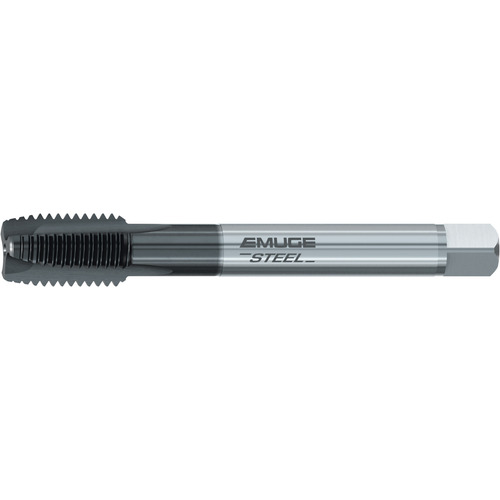

Spiral Point Tap; 1/2″ -20 × 3.937″ OAL ; HSSE ; GLT-1 ; 3B
Spiral Point Tap; 1/2″ - 20 ; 3.937″ OAL ; HSSE ; TiAlN ; 3B ; Series CU20K560

| Thread Size | 1/2″ - 20 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | 1/2″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 20 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 3B | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Overall Length (OAL) | 3.937″ | Style | Plug |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Left Hand |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Series/List # | CU20K560 |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
• Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.11
