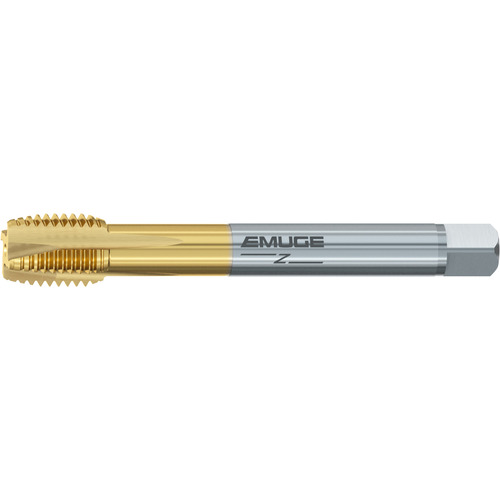

3/4-10-REK BZ-PM-PLUG TAP
Spiral Point Tap; 3/4″ - 10 ; 4.921″ OAL ; 3 FL ; HSSE-PM ; TiN ; 2BX ; Series CU208F01
| Thread Standard | UNC | Coating | TiN |
| Thread Size | 3/4″ - 10 | Flute Count (NOF) | 3 |
| Thread Diameter Size (TDZ) | 3/4″ | Cutting Edge Material | HSSE-PM |
| Threads per Inch (TPI) | 10 | Applicable Material | | Steel | Stainless Steel | |
| Thread Tolerance Class (TCTR) | 2BX | Application | Blind Hole |
| Usable Length (LU) | 0.59″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Overall Length (OAL) | 4.921″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4P-5P | Series/List # | CU208F01 |
Product Features
| Remarks | • Rekord B-Z design is typically for through hole applications in long-chipping materials. • Spiral Point creates tight curled chips that are pushed ahead of the tap. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.345
