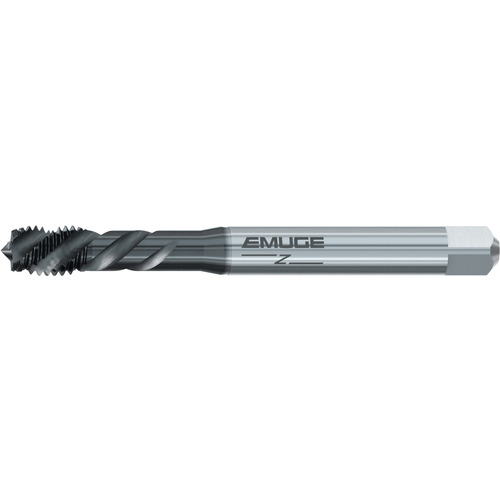

Spiral Flute Tap; #4 -40 × 2.205″ OAL ; HSSE ; GLT-1 ; UNC ; 3B
Spiral Flute Tap; #4 - 40 ; 2.205″ OAL ; HSSE ; TiAlN ; 3B ; Series BU50C460
| Thread Diameter Size (TDZ) | #4 | Tool Type | Spiral Flute Tap |
| Threads per Inch (TPI) | 40 | Chamfer | 2P-3P |
| Thread Standard | UNC | Coating | TiAlN |
| Overall Length (OAL) | 2.205″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Left Hand |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSCo | Series/List # | BU50C460 |
| Thread Tolerance Class (TCTR) | 3B | Application | Blind Hole |
| Standard | DIN | ANSI |
Product Features
| Remarks | • The Enorm Z design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.015
