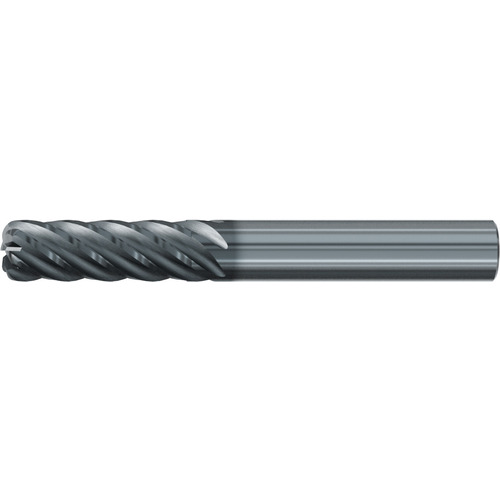

SQ End Mill; 1 Dia. × 3″ LOC × 1″ Shank Dia. × 6″ OAL ; 6 FL ; Carbide ; AlCrN"
SQ End Mill; 1″ Dia. × 3″ LOC × 1″ Shank Dia. × 6″ OAL ; 0.03″ RE ; 6 FL ; Carbide ; AlCr ; Series 3943L
| Cutting Diameter (DC) | 1″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1″ | Applicable Material | | Universal Materials | |
| Depth of Cut Maximum (APMX) | 3″ | Application | | Finishing | |
| Overall Length (OAL) | 6″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Series/List # | 3943L |
| Coating | AlCr | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Flute Count (NOF) | 6 | Trade Name | Top-Cut VAR |
| Shank Type | Round |
Product Features
| Remarks | • TOP-Cut VAR carbide end mill with 6 flute design for roughing and finishing in almost all materials • Variable pitch helix angle enable low-vibration machining and universal use in almost all materials and milling processes • Suitable for trochoidal milling tool paths • ALCR coating for additional heat and wear resistance | Country of Origin | USA |
Shipping Info
Package Weight
1.7
