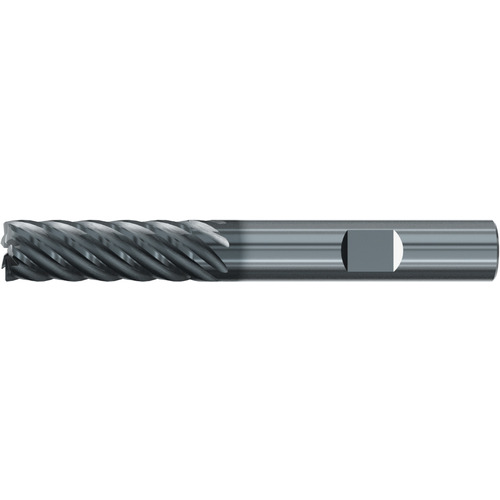

SQ End Mill; 3/4 Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 7 FL ; Carbide ; AlCrN"
Square End Mill; 3/4″ Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 7 FL ; Carbide ; AlCr
| Cutting Diameter (DC) | 3/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Universal Materials | |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Application | | Finishing | |
| Overall Length (OAL) | 5″ | Tool Type | End Mill |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | AlCr | Series/List # | 3932L |
| Flute Count (NOF) | 7 | Trade Name | Top-Cut VAR |
| Shank Type | Weldon |
Product Features
| Remarks | • TOP-Cut VAR carbide end mill with 7 flute stub design for light roughing and finishing in almost all materials, including aerospace alloys • Variable pitch helix angle enable low-vibration machining and universal use in almost all materials and milling processes • Suitable for trochoidal style machining strategies • ALCR coating for additional heat and wear resistance | Country of Origin | USA |
Shipping Info
Package Weight
0.9
