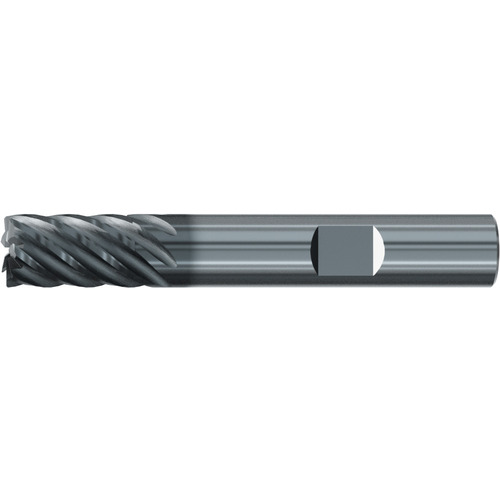

SQ End Mill; 1 Dia. × 1″ LOC × 1″ Shank Dia. × 4″ OAL ; 7 FL ; Carbide ; AlCrN"
Square End Mill; 1″ Dia. × 1″ LOC × 1″ Shank Dia. × 4″ OAL ; 7 FL ; Carbide ; AlCr
| Cutting Diameter (DC) | 1″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1″ | Applicable Material | | Universal Materials | |
| Overall Length (OAL) | 4″ | Application | | Finishing | |
| Cutting Edge Material | Carbide | Tool Type | End Mill |
| Coating | AlCr | Series/List # | 3930L |
| Flute Count (NOF) | 7 | Trade Name | Top-Cut VAR |
Product Features
| Remarks | • TOP-Cut VAR carbide end mill with 7 flute stub design for light roughing and finishing in almost all materials, including aerospace alloys • Variable pitch helix angle enable low-vibration machining and universal use in almost all materials and milling processes • Suitable for trochoidal style machining strategies • ALCR coating for additional heat and wear resistance | Country of Origin | USA |
Shipping Info
Package Weight
1.5
