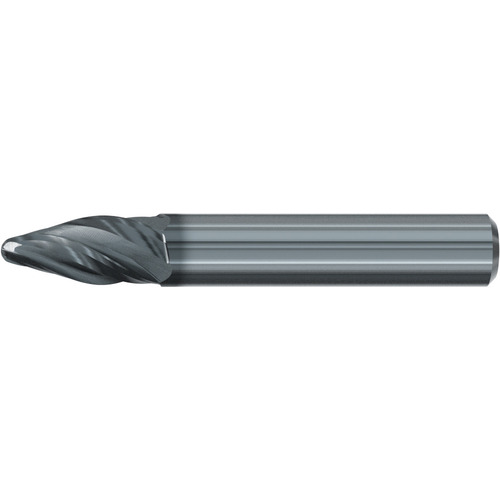

Tapered End Mills; 4 mm Dia. × 14 mm LOC × 6 mm Shank Dia. × 62 mm OAL; 3 FL; Carbide; Ball Nose; AlCr; Series 3538L
Tapered End Mill; 4 mm Dia. × 14 mm LOC × 62 mm OAL × 6 mm Shank Dia. ; 3 FL ; Carbide ; AlCr
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Application | | Finishing | | Coating | AlCr |
| Cutting Diameter (DC) | 4 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 14 mm | End Shape | Ball Nose |
| Flute Count (NOF) | 3 | Shank Type | Round |
| Corner Radius (RE) | 60 mm | Tool Type | Tapered |
| Overall Length (OAL) | 62 mm | Series/List # | 3538L |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Remarks | • Circle segment carbide end mill in oval form for finishing applications in many materials, including high-strength materials • Special geometry allows larger line jumps with the same surface quality and time savings of up to 90% • Low-vibration machining due to variable spacing • ALCR coating for longer tool life and very good suitability for high-alloyed materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.041
