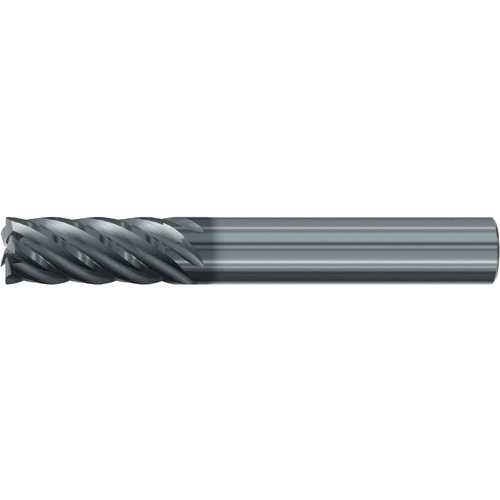

SQ End Mill; 1/2 Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 6 FL ; Carbide ; AlCrN"
Square End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 6 FL ; Carbide ; AlCr
| Cutting Diameter (DC) | 1/2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Applicable Material | | Universal Materials | |
| Overall Length (OAL) | 3-1/4″ | Application | | Finishing | |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlCr | Series/List # | 2948L |
| Flute Count (NOF) | 6 | Trade Name | Top-Cut VAR |
Product Features
| Remarks | • TOP-Cut VAR carbide end mill with 6 flute design for finishing milling strategies in almost all materials • Variable flute spacing for reduced vibration and improved surface finish • Suitable for trochoidal milling path applications • ALCR coating for longer tool life and can be used in high-alloyed materials | Country of Origin | USA |
Shipping Info
Package Weight
0.5
