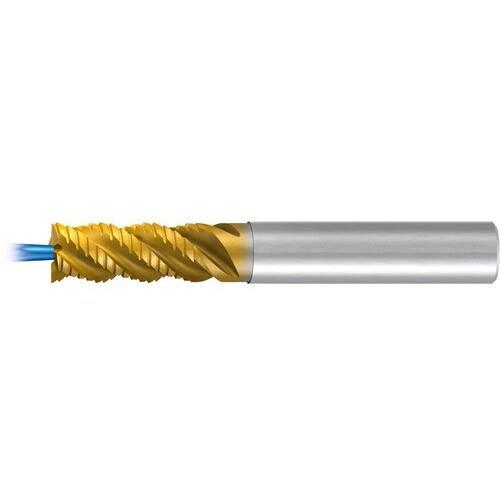

SQ End Mill; 5/16 Dia. × 3/4″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiAlN ; Series 2648TZ"
Square End Mill; 5/16″ Dia. × 3/4″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/4″ | Applicable Material | | Super-Alloys / Titanium | |
| Overall Length (OAL) | 2-1/2″ | Application | | Roughing | Finishing | |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3125″ |
| Coating | TiAlN | Series/List # | 2648TZ |
| Flute Count (NOF) | 4 | Trade Name | TiNox-Cut |
Product Features
| Remarks | • TiNox-Cut carbide end mill for roughing operations in materials that are difficult to machine • Suitable for high performance roughing operations due to semi-finishing profile • Variable spacing reduces vibrations • TIN/TIALN multi-layer coating for additional heat and wear resistance | Country of Origin | USA |
Shipping Info
Package Weight
0.11
