5/8 SC CH ML 90D 6F TIALN

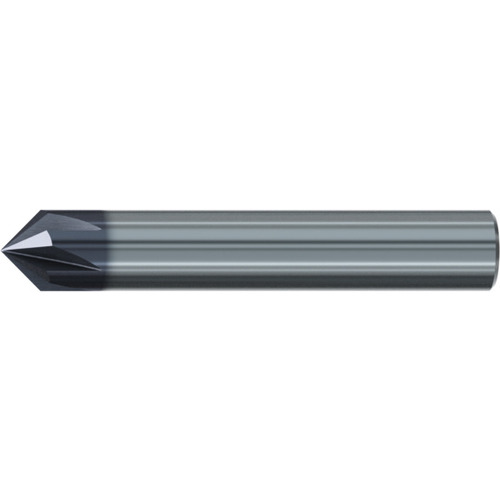

Chamfer Mill; 5/8″ Dia. × 5/8″ LU × 4″ OAL × 5/8″ Shank Dia. ; 6 FL ; 90 Degrees ; Carbide ; TiAlN ; Series 1711A
| Applicable Material | | Universal Materials | | Point Angle (SIG) | 90 Degrees |
| Application | | Finishing | | Number of Teeth | 6 |
| Cutting Diameter (DC) | 5/8″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 5/8″ | Coating | TiAlN |
| Flute Count (NOF) | 6 | Shank Type | Round |
| Flute Helix Angle (FHA) | 0 Degrees | Tool Type | Chamfer Mill |
| Overall Length (OAL) | 4″ | Series/List # | 1711A |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
Product Features
| Remarks | • Carbide chamfering end mill for chamfering edges and slots in almost all materials • 90° taper angle • Solid sub-micro grain carbide • Longer tool life with increased performance. | Country of Origin | Germany |
Shipping Info
Package Weight
0.478
