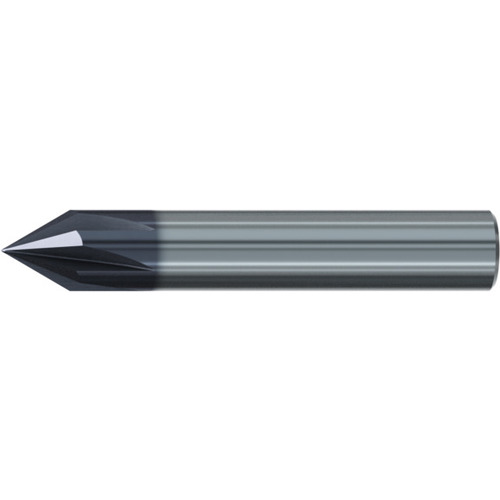

1/2 - Chamfer Mill - Carbide - 60° 6 Flute TIALN
Chamfer Mill; 1/2″ Dia. × 1/2″ LU × 3″ OAL × 1/2″ Shank Dia. ; 6 FL ; 60 Degrees ; Carbide ; TiAlN ; Series 1711A
| Applicable Material | | Universal Materials | | Point Angle (SIG) | 60 Degrees |
| Application | | Finishing | | Number of Teeth | 6 |
| Cutting Diameter (DC) | 1/2″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 1/2″ | Coating | TiAlN |
| Flute Count (NOF) | 6 | Shank Type | Round |
| Flute Helix Angle (FHA) | 0 Degrees | Tool Type | Chamfer Mill |
| Overall Length (OAL) | 3″ | Series/List # | 1711A |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
Product Features
| Remarks | • Carbide chamfering end mill for chamfering edges and slots in almost all materials • 60° taper angle • Solid sub-micro grain carbide • Longer tool life with increased performance. | Country of Origin | Germany |
Shipping Info
Package Weight
0.28
