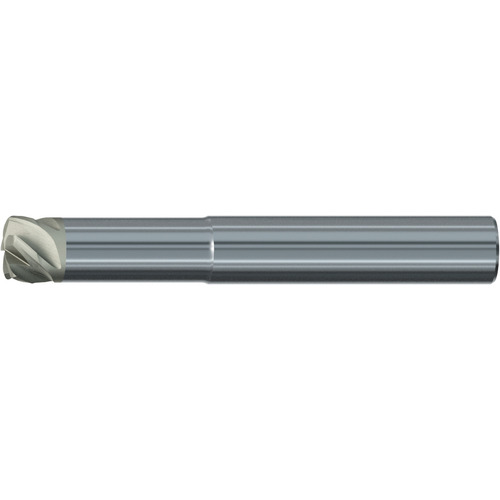

SQ End Mill; 3/8 Dia. × 5/32″ LOC × 3/8″ Shank Dia. × 2-3/4″ OAL ; 5 FL ; Ceramic ; Uncoated ; Series 3915″
Corner Radius End Mill; 3/8″ Dia. × 5/32″ LOC × 3/8″ Shank Dia. × 2-3/4″ OAL ; 5 FL ; Ceramic ; Uncoated ; Series 3915
| Cutting Diameter (DC) | 3/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 5/32″ | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 2-3/4″ | Application | | Roughing | |
| Cutting Edge Material | Ceramic | Decimal Equivalent | 0.375″ |
| Coating | Uncoated | Series/List # | 3915 |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.0394″ |
| Flute Helix Angle (FHA) | 40 Degrees | Trade Name | Cera-Cut |
Product Features
| Remarks | • End mill with ceramic cutting edge for roughing and pre-finishing in difficult-to-machine or hardened materials • Ceramic brazed headed tool for high speed milling • Suitable for high feed machining (HFC) with face cutting edge • Ceramic end mills cut at 200 to 400% faster rates than carbide tools. | Country of Origin | Germany |
Shipping Info
Package Weight
0.54
