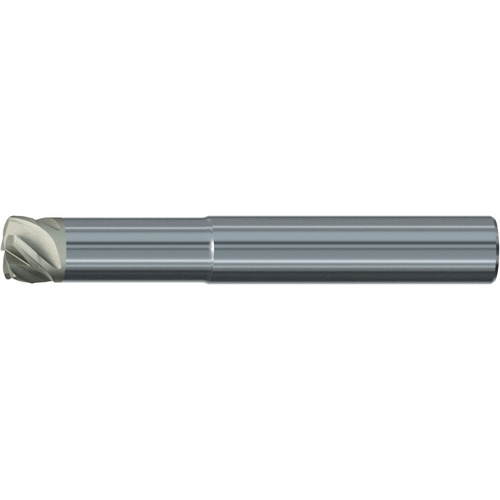

SQ End Mill; 12 mm Dia. × 4 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 5 FL ; Ceramic ; Uncoated ; Series 3818
Corner Radius End Mill; 12 mm Dia. × 4 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 5 FL ; Ceramic ; Uncoated ; Series 3818
| Cutting Diameter (DC) | 12 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 4 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 83 mm | Application | | Roughing | |
| Cutting Edge Material | Ceramic | Series/List # | 3818 |
| Coating | Uncoated | Corner Radius (RE) / Chamfer Width (CHW) | 1.2 mm |
| Flute Count (NOF) | 5 | Trade Name | Cera-Cut |
| Flute Helix Angle (FHA) | 40 Degrees |
Product Features
| Remarks | • End mill with ceramic cutting edge for roughing and pre-finishing in difficult-to-machine or hardened materials • Ceramic brazed headed tool for high speed milling • Suitable for high feed machining (HFC) with face cutting edge • Ceramic end mills cut at 200 to 400% faster rates than carbide tools. | Country of Origin | Germany |
Shipping Info
Package Weight
0.676
