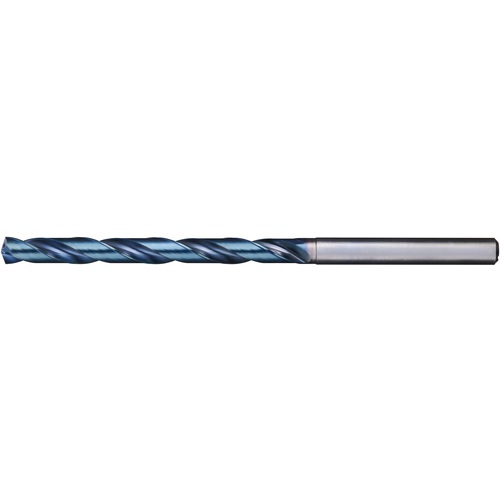

L9869 1/8 AQUA 8XD DRILL
SC Drill; 1/8″ Dia. × 1/8″ Shank Dia. × 92 mm OAL ; 140 Degrees ; 8xD ; AlCrN ; Series L9869
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Functional Length (LF) | 39 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.125″ | Series/List # | L9869 |
| Length Group | 8xD | Usable Length (LU) | 41 mm |
| Coating | AlCrN | Overall Length (OAL) | 92 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 140 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
