5602 9.2 MM 5XD COOLANT

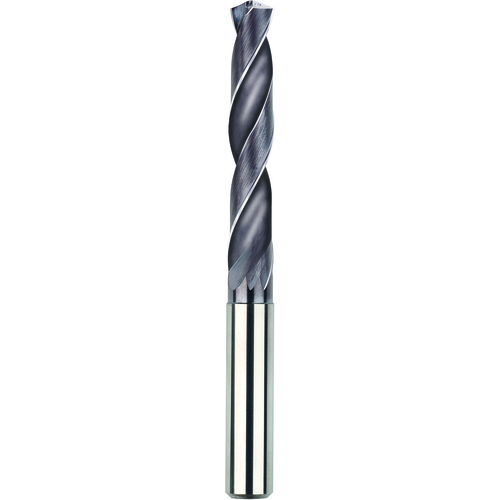

SC Drill; 9.2 mm Dia. × 10 mm Shank Dia. × 103 mm OAL × 61 mm LCF ; 140 Degrees ; 5xD ; Helical Flute ; TiAlCN ; Series 5602
| Drill Bit Size / Cutting Diameter (DC) | 9.2 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.2 mm | Tool Type | High Performance Carbide Drill |
| Length Group | 5xD | Flute Type | Helical |
| Coating | TiAlCN | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | | Series/List # | 5602 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 61 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 61 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 103 mm |
| Functional Length (LF) | 61 mm | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Feature | Single Margin Drill |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 | Body Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.178
