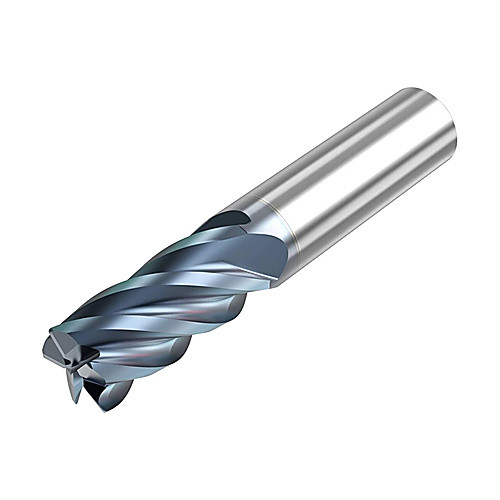

STR540-0.313-D2-R030.0-Z5
| Cutting Diameter (DC) | 0.313″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Corner Radius |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide | Series/List # | STR540 |
| Coating | HTA | Corner Radius (RE) / Chamfer Width (CHW) | 1/32″ |
| Flute Count (NOF) | 5 |
Product Features
| Country of Origin | USA |
