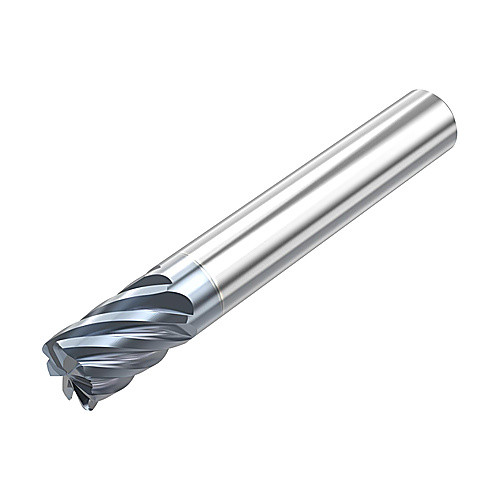

S738R-0.250-D2-R015.0-Z7
SQ End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 0.015″ RE ; 0.015″ RE ; 7 FL ; Carbide ; HTA ; Series S738R
| Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Type | Corner Radius |
| Overall Length (OAL) | 2″ | Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide | Series/List # | S738R |
| Coating | HTA | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| Flute Count (NOF) | 7 |
Product Features
| Country of Origin | USA |
