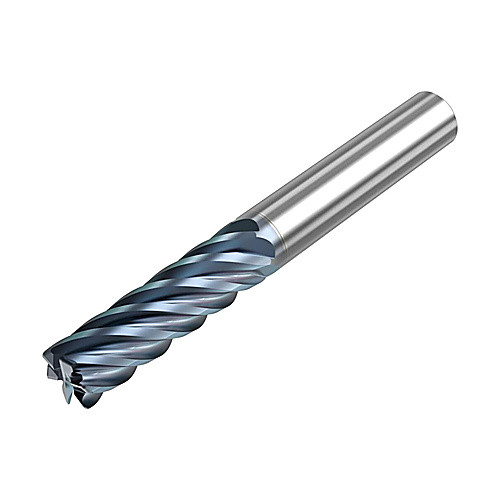

S638R-0.500-D1-R060.0-Z6
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.06″ RE ; 6 FL ; Carbide ; HTA ; Series S638R
| Cutting Diameter (DC) | 1/2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Corner Radius |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.5″ |
| Cutting Edge Material | Carbide | Series/List # | S638R |
| Coating | HTA | Corner Radius (RE) / Chamfer Width (CHW) | 1/16″ |
| Flute Count (NOF) | 6 |
Product Features
| Country of Origin | USA |
