VGM3-AL-06250CR0.09-N

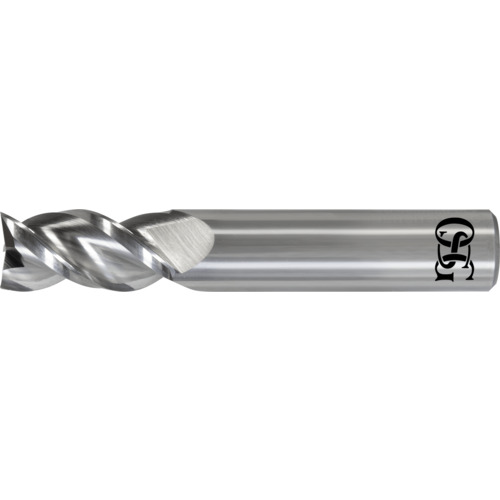

Square End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 3 FL ; Carbide ; Uncoated ; Series VGM3-AL
| Cutting Diameter (DC) | 5/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3-1/2″ | Decimal Equivalent | 0.625″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | VGM3-AL |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.09″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.25
