VGM3-AL-03125CR0.02-N

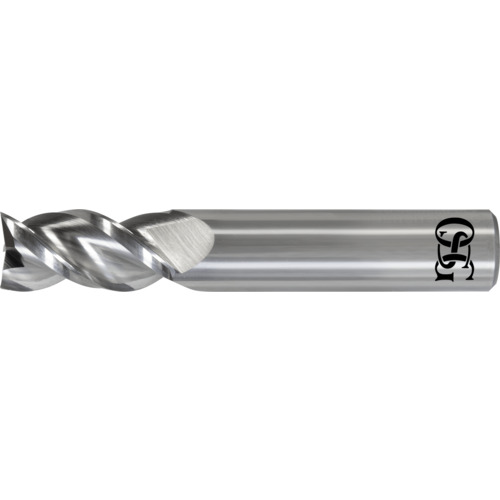

SQ End Mill; 5/16″ Dia. × 13/16″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; Uncoated ; Series VGM3-AL
| Cutting Diameter (DC) | 5/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 13/16″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | VGM3-AL |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.07
