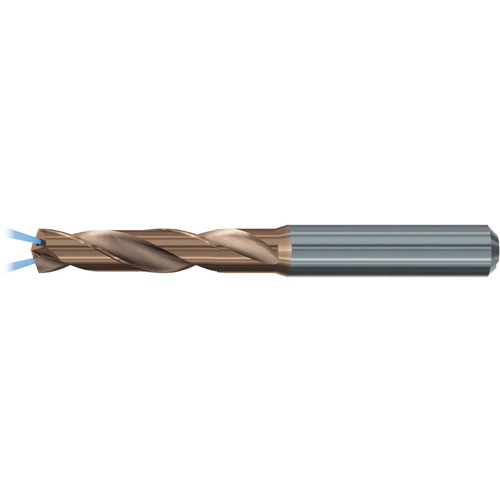

 InoxDrill ID103-3xD-HA/(3D) InoxDrill ID103-3xD-HA_Enlarge.jpg)
3.65MM INOXDRL 3XD COOLNT
SC Drill; 3.65 mm Dia. × 6 mm Shank Dia. × 62 mm OAL × 20 mm LCF ; 140 Degrees ; 3xD ; AlCr ; Series TA201724
| Drill Bit Size / Cutting Diameter (DC) | 3.65 mm | Tool Type | High Penetration Rate Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.65 mm | Measurement Type | Metric |
| Length Group | 3xD | Series/List # | TA201724 |
| Coating | AlCr | Usable Length (LU) | 20 mm |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 62 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Feature | • InoxDrill is designed for high penetration rate drilling in production applications. • Self-centering point geometry that eliminates the need for spot drilling. • Unique flute design creates short, constant chip formations that eliminate the need for peck-drilling. • Advanced ALCR-89 coating for heat and wear resistance in aerospace materials. |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Standard | DIN 6535 | Connection Code Machine Side (CCMS) | HA |
| Cutting Edge Material | Carbide | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.033
