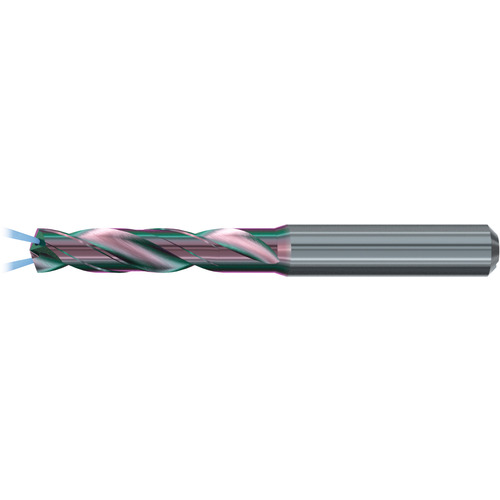

 SteelDrill SD102-3xD-HA/(3D) SteelDrill SD102-3xD-HA_1_Enlarge.jpg)
 SteelDrill SD102-3xD-HA/(3D) SteelDrill SD102-3xD-HA_Enlarge.jpg)
Solid Carbide Drill; 3.2 mm Dia. × 6 mm Shank Dia. × 62 mm OAL ; 140 Degrees ; 3xD ; AlTiN-112
SC Drill; 3.2 mm Dia. × 6 mm Shank Dia. × 62 mm OAL × 20 mm LCF ; 140 Degrees ; 3xD ; AlTiN ; Series TA201544
| Drill Bit Size / Cutting Diameter (DC) | 3.2 mm | Tool Type | High Penetration Rate Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.2 mm | Measurement Type | Metric |
| Length Group | 3xD | Series/List # | TA201544 |
| Coating | AlTiN | Usable Length (LU) | 20 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 62 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Feature | • SteelDrill is designed for high penetration rate drilling in production applications. • Self-centering point geometry that eliminates the need for spot drilling. • Unique flute design creates short, constant chip formations that eliminate the need for peck-drilling. • Double margin flute design for rounder holes and improved surface finishes. |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Standard | DIN 6535 | Connection Code Machine Side (CCMS) | HA |
| Cutting Edge Material | Carbide | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | Germany |
