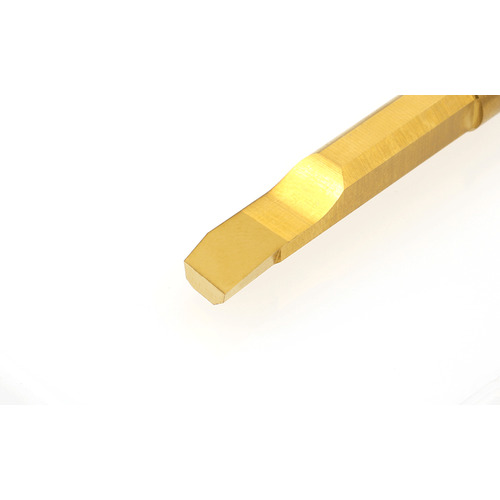

SHFS035R015H TM4
Boring Bar; 0.138″ Shank Dia. × 0.146″ Min Bore Dia. × 0.016″ Max Bore Depth × 0.689″ LU × 2.362″ LF ; 0.0059″ Corner Radius ; Carbide ; TiCN

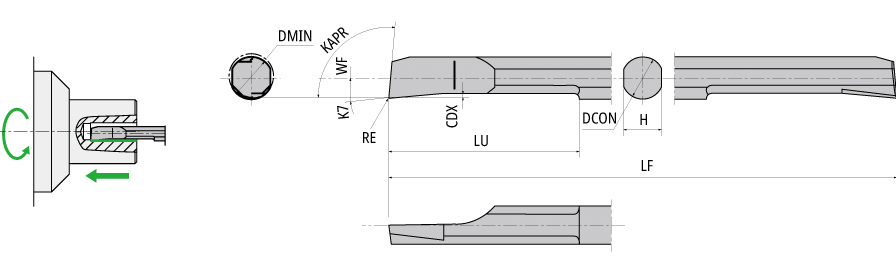

| Connection Diameter Machine Side (DCONMS) | 0.138″ | Cutting Depth Maximum (CDX) | 0.016″ |
| Minimum Bore Diameter (DMIN) | 0.146″ | Functional Width (WF) | 0.065″ |
| Functional Length (LF) | 2.362″ | Usable Length (LU) | 0.689″ |
| Coating | TiCN | Shank Height (H) | 0.126″ |
| Grade | TM4 | Body Material | Carbide |
| Application | | Inserts for miniature | | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Corner Radius (RE) | 0.0059″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.05
