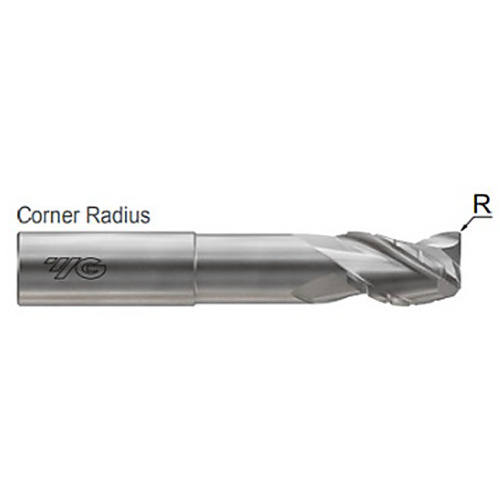

Corner Radius End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Bright ; Series E5I39
| Cutting Diameter (DC) | 3/4″ | Usable Length (LU) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 4″ | Neck Diameter (DN) | 0.71″ |
| Cutting Edge Material | Carbide | Style | Corner Radius With Neck |
| Coating | Uncoated | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | E5I39 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
