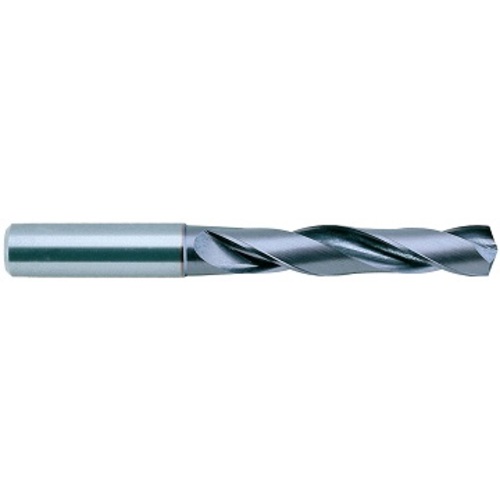

11/16X18X73X123 DRL 3XD
SC Drill; 11/16″ Dia. × 18 mm Shank Dia. × 123 mm OAL × 73 mm LCF ; 140 Degrees ; 3xD ; Spiral Flute ; TiAIN ; Series DB301
| Drill Bit Size / Cutting Diameter (DC) | 11/16″ | Shank Standard | DIN 6539 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 11/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.6875″ | Tool Type | General Purpose |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.46 mm | Flute Type | Spiral |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | TiAIN | Series/List # | DB301 |
| Applicable Material | | Steel | Cast Iron | | Usable Length (LU) | 73 mm |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Length Chip Flute (LCF) | 73 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 123 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 123 mm | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Straight-Cylindrical | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | S.Korea |
