1/4X3/4X2-1/2 CB SPT DRL

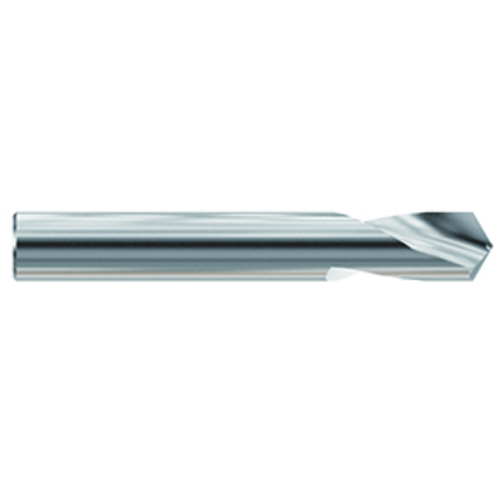

Drill Bit; 1/4″ Dia. × 2-1/2″ OAL × 1/4″ Shank Dia. ; 120 Degrees ; 2 FL ; Carbide ; Series D5322
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Nose Length | 7/97″ |
| Decimal Equivalent | 0.25″ | Applicable Material | | Steel | Cast Iron | |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.35 mm | Flute Length | 3/4″ |
| Point Angle (SIG) | 120 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2-1/2″ | Tool Type | NC Spotting Drill |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Series/List # | D5322 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
0.5
Package Width
3.75
Package Height
0.5
Package Weight
0
