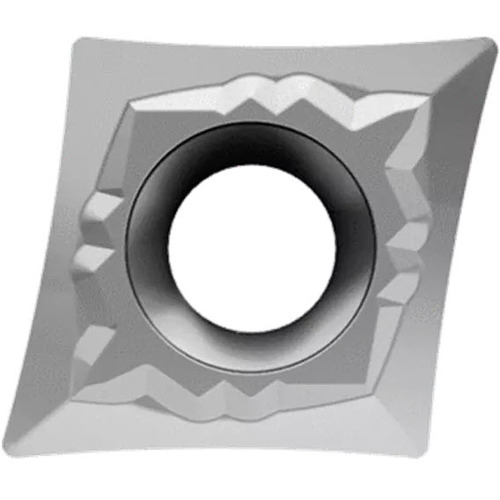

YG10/CCGT21.51-AL
Turning Insert; Rhombic 80 ; 0.244″ Length × 1/4″ IC × 1/64″ Corner Radius ; YG10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turning Positive Insert |
| Insert Style | CCGT | Depth of Cut Maximum (APMX) | 2″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.244″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/16″ | Chip Breaker Type | AL |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Rhombic 80° |
| Coating | Uncoated | Series/List # | CCGT |
| Grade | YG10 | Cutting Edge Effective Length (LE) | 0.244″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
1.6535
Package Width
3.937
Package Height
0.3937
Package Weight
0
