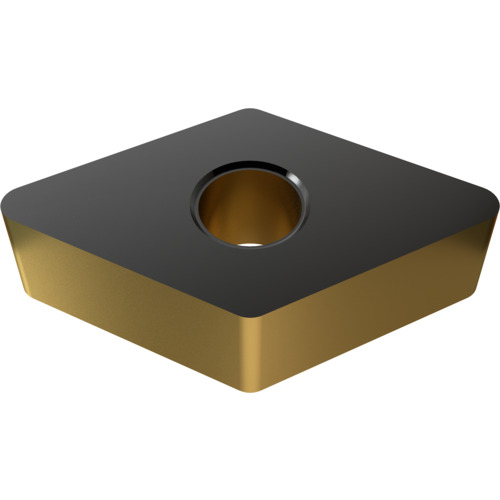

DNMA150612-YG3010/DNMA443
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turning Negative Insert |
| Insert Style | DNMA | Depth of Cut Maximum (APMX) | 5″ |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.551″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 1/4″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Rhombic 55° |
| Cutting Edge Material | Carbide | Series/List # | DNMA |
| Coating | | Al2O3 | TiCN | | Cutting Edge Effective Length (LE) | 0.551″ |
| Grade | YG3010 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.625
Package Width
2.375
Package Height
0.75
Package Weight
0
