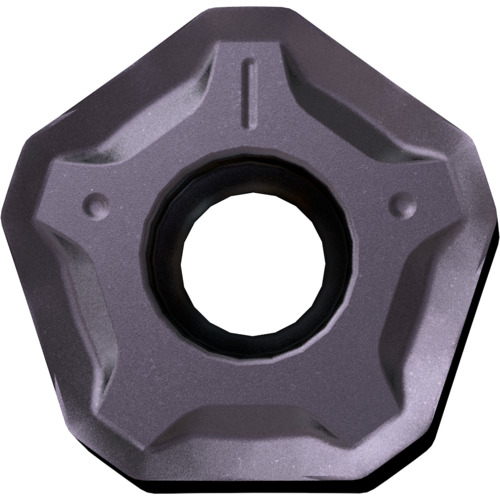

PNMU1206ZNN-YG713/PNMU1206ZNN
| Applicable Material | | Steel | Hard Materials | | Insert Style | PNMU |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Depth of Cut Maximum (APMX) | 4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.551″ | Series/List # | PNMU |
| Insert Thickness (S) | 0.23″ | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 2.1″ | Tool Type | Milling Insert |
| Insert Included Angle (EPSR) | 36 Degrees | Coating Process | PVD |
| Coating | TiAlN | Number of Cutting Edges | 10 |
| Grade | YG713 | Measurement Type | Inch |
| Shape | Pentagon |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
1.654
Package Width
3.937
Package Height
0.394
Package Weight
0
