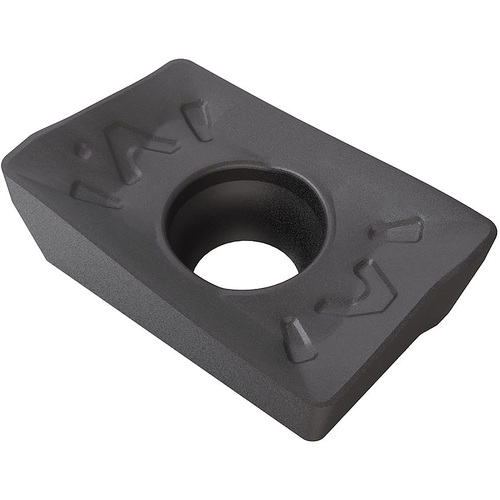

APKT100305PDTR-YG713/APKT1003PDTR
Milling Insert; 0.3898″ Length × 0.142″ Thickness ; YG713 ; Carbide ; TiAlN
| Applicable Material | | Steel | Hard Materials | | Insert Style | APKT |
| Cutting Edge Length (L) | 0.3898″ | Clearance Angle Major (AN) | Special |
| Corner Radius (RE) | 0.0197″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 9″ | Series/List # | APKT |
| Inscribed Circle Diameter (IC) | 0.264″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.142″ | Tool Type | Milling Insert |
| Wiper Edge Length (BS) | 0.034″ | Coating Process | PVD |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 2 |
| Coating | TiAlN | Cutting Edge Effective Length (LE) | 0.3898″ |
| Grade | YG713 | Measurement Type | Inch |
| Shape | Parallelogram 80° |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.000
Package Width
1.750
Package Height
0.625
Package Weight
