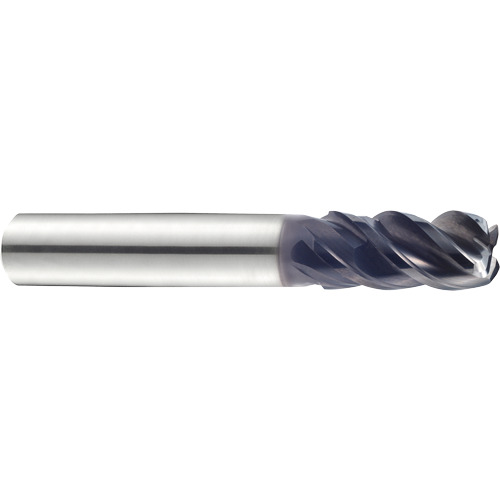

Corner Radius End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; Y-Coating ; Series UGMG42
SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 0.09″ RE ; 4 FL ; Carbide ; AlCrN ; Series UGMG42
| Cutting Diameter (DC) | 3/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | 4 Flute Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | UGMG42 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.146
