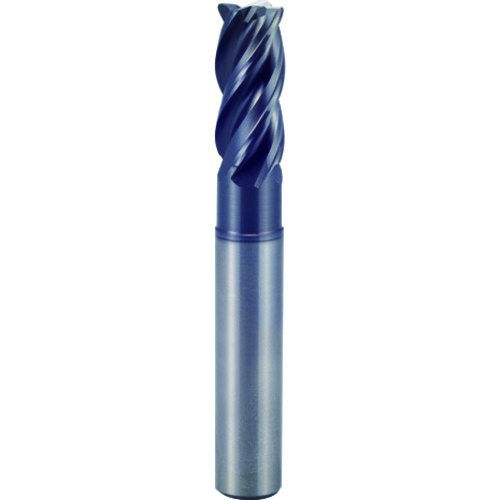

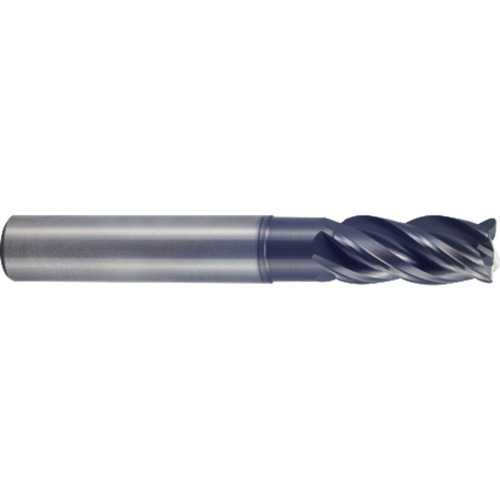

Corner Radius End Mill; 3/16″ Dia. × 7/32″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Y-Coating ; Series UGMF74
SQ End Mill; 3/16″ Dia. × 7/32″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 0.03″ RE ; 4 FL ; 1″ LBS ; Carbide ; AlCrN ; Series UGMF74
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 7/32″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 3″ | Tool Type | 4 Flute Extended Length |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1875″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | UGMF74 |
| Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0.051
