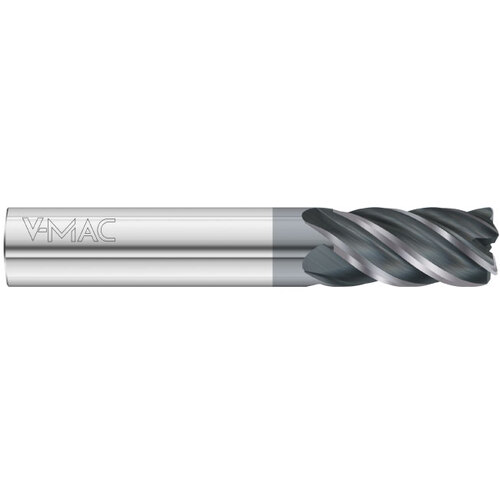

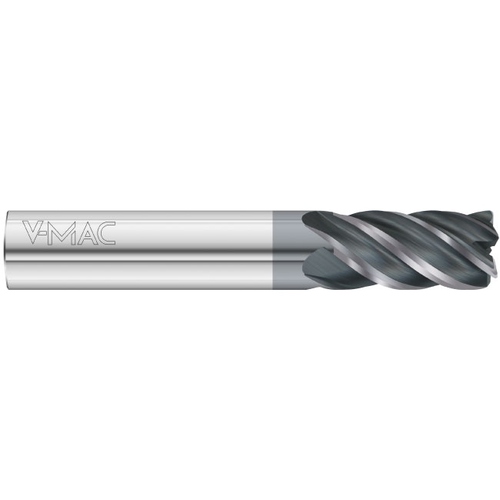

3125SD FC21 R.060 .250 RH
SQ End Mill; 1/4″ Dia. × 1″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 5 FL ; Carbide ; FC21 ; Series 3125
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | High Temperature Alloys, Stainless Steels, Inconels |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | End Mill |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 6.35″ |
| Cutting Edge Material | Carbide | Series/List # | 3125 |
| Coating | FC21 | Corner Radius (RE) / Chamfer Width (CHW) | 0.060″ |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Shank Type | Straight | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.063
