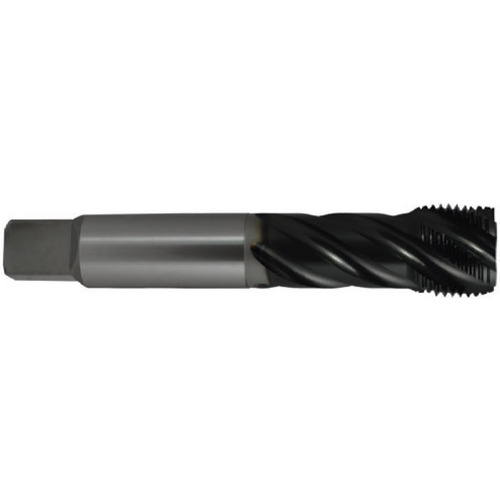

Spiral Flute Tap; 2-1/4″ - 8 ; 9.8425″ OAL ; 6 FL ; HSS-E ; Hardslick ; 2B ; Series BG
Spiral Flute Tap; 2-1/4″ - 8 ; 9.8425″ OAL ; 6 FL ; HSSE ; HL ; 2B ; Series BG
| Thread Diameter Size (TDZ) | 2-1/4″ | Chamfer | 2P-3P |
| Threads per Inch (TPI) | 8 | Coating | HL |
| Thread Standard | UN | Shank Type | Square |
| Overall Length (OAL) | 9.8425″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1.2992″ | End Shape | Modified Bottoming |
| Usable Length (LU) | 4.331″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 1.894″ | Length Group | 2.5xD |
| Flute Count (NOF) | 6 | Square Size | 1.42″ |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Tapping Prehole Diameter (Pre-hole) | 2.1363″ |
| Thread Tolerance Class (TCTR) | 2B | Series/List # | BG |
| Standard | DIN/ANSI | Thread Size | 2-1/4″ - 8 |
| Tool Type | Oil Field Taps |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.5
Package Width
11.75
Package Height
2.5
Package Weight
7.341
