5/32(R.01)X7/16X2 4F V7+A

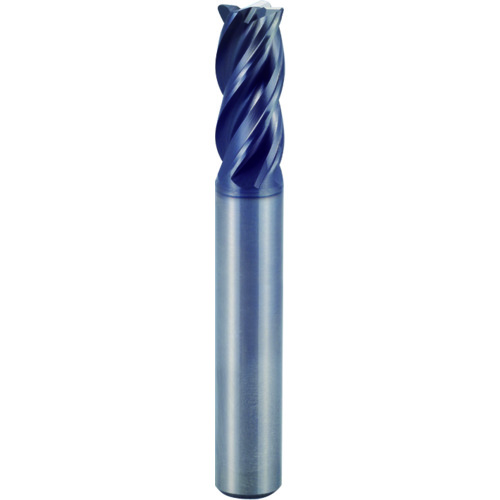

SQ End Mill; 5/32″ Dia. × 7/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 0.01″ RE ; 4 FL ; Carbide ; AlCrN ; Series UGMF70
| Cutting Diameter (DC) | 5/32″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 7/16″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2″ | Tool Type | 4 Flute Standard Length |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1563″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | UGMF70 |
| Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.034
