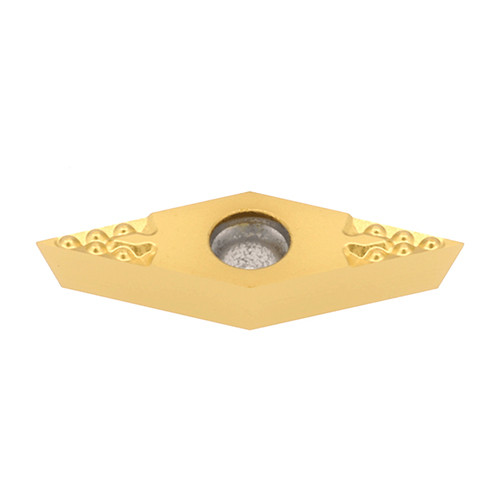

VCGT2204MAZ7 QM3
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Cutting Edge Material | Carbide |
| Application | | Inserts for miniature | | Coating | TiCN |

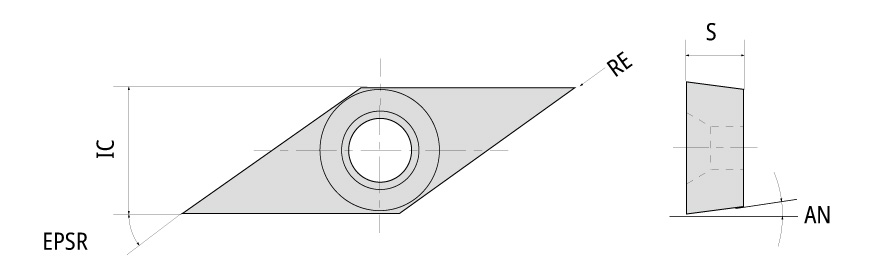

| Corner Radius (RE) | 0.0031″ | Grade | QM3 |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 35 Degrees | Body Material | Carbide |
Product Features
| Country of Origin | Japan |
