GTTR12K00
Grooving Toolholder ; 0.472″ Shank Height ; 0.472″ Shank Width ; 0.012″ CW Min. ; 0.118″ CW Max. ; 0.063″ Max Depth ; Right Hand ; Steel

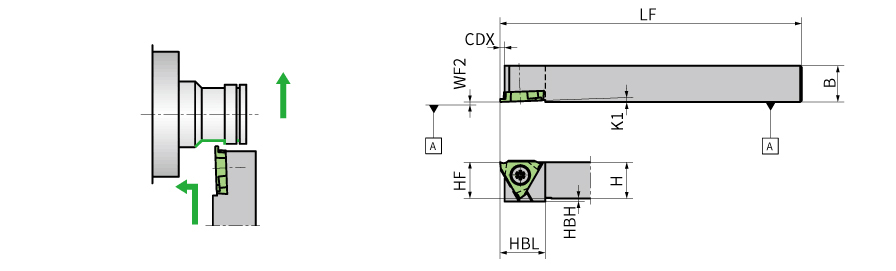

| Cutting Width Minimum (CWN) | 0.012″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.118″ | Application | | Back turning | Grooving | |
| Cutting Depth Maximum (CDX) | 0.063″ | Body Material | Steel |
| Shank Height (H) | 0.472″ | Measurement Type | Inch |
| Shank Width (B) | 0.472″ | Head Bottom Offset Height (HBH) | 0.039″ |
| Functional Length (LF) | 4.724″ |
Product Features
| Country of Origin | Japan |
