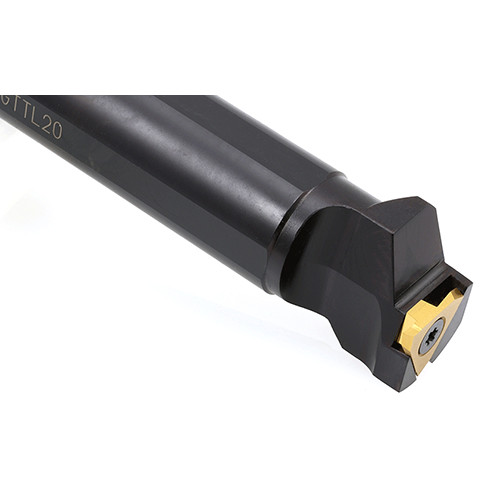

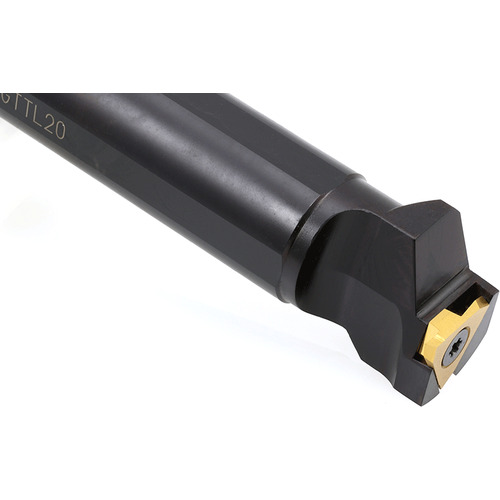

DS-GTTL20
Grooving Toolholder ; 0.748″ Shank Height ; 0.748″ Shank Width ; 0.787″ Shank Dia. ; 0.012″ CW Min. ; 0.118″ CW Max. ; 0.063″ Max Depth ; Left Hand ; Steel

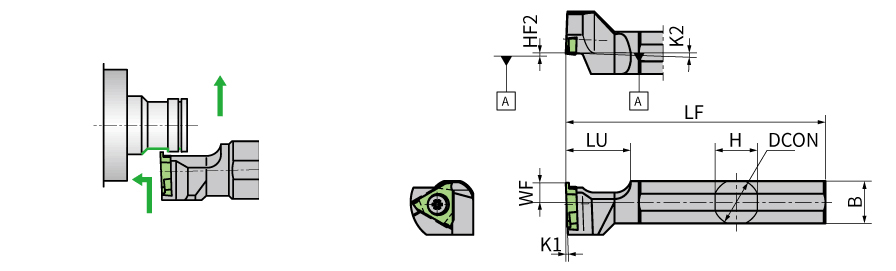

| Cutting Width Minimum (CWN) | 0.012″ | Functional Length (LF) | 4.724″ |
| Cutting Width Maximum (CWX) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 0.787″ |
| Cutting Depth Maximum (CDX) | 0.063″ | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 0.748″ | Application | | Back turning | Grooving | |
| Shank Width (B) | 0.748″ | Body Material | Steel |
| Functional Width (WF) | 0.236″ | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
