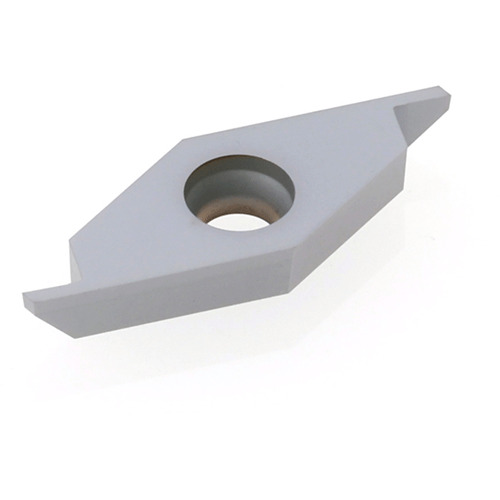

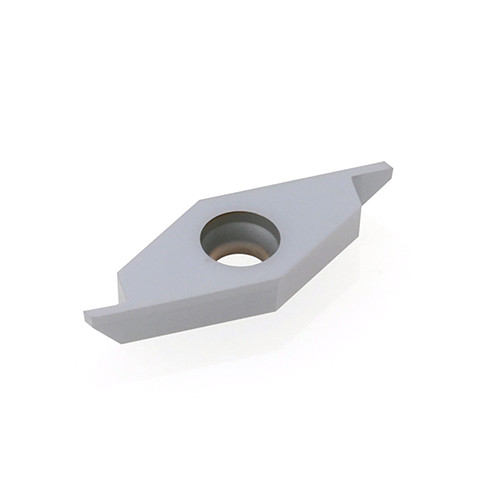

CSVC11FLV10 VM1
Grooving Insert; CSVC11FLV10 VM1 GP50E

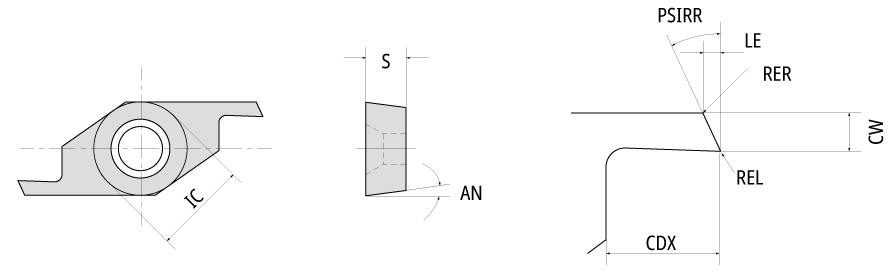

| Applicable Material | | Steel | Stainless Steel | | Grade | VM1 |
| Application | | Inserts for miniature | | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/4″ | Body Material | Carbide |
| Insert Included Angle (EPSR) | 35 Degrees | Cutting Depth Maximum (CDX) | 0.118″ |
| Cutting Edge Material | Carbide | Cutting Edge Effective Length (LE) | 0.02″ |
| Coating | TiCN |
Product Features
| Country of Origin | Japan |
