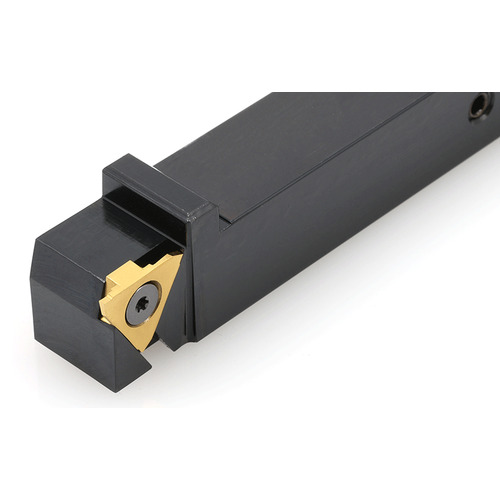

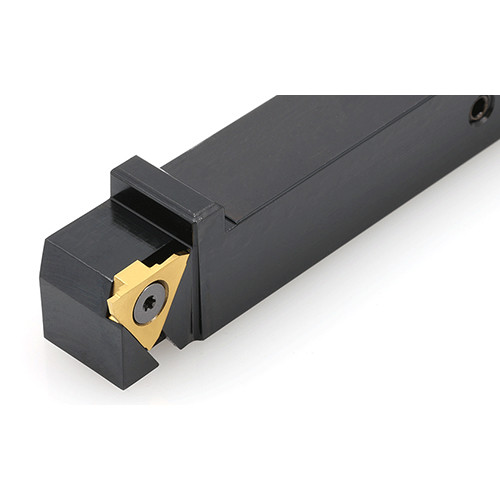

GTTR08HA-IN-OH
Grooving Toolholder ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.012″ CW Min. ; 1/8″ CW Max. ; 0.071″ Max Depth ; Right Hand ; Steel

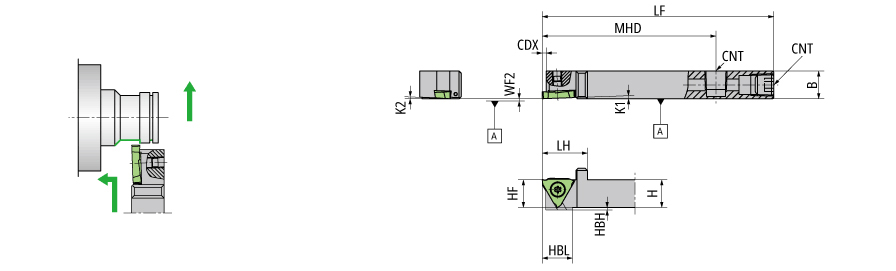

| Cutting Width Minimum (CWN) | 0.012″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 1/8″ | Application | | Back turning | Grooving | |
| Cutting Depth Maximum (CDX) | 0.071″ | Body Material | Steel |
| Shank Height (H) | 1/2″ | Measurement Type | Inch |
| Shank Width (B) | 1/2″ | Head Bottom Offset Height (HBH) | 0.039″ |
| Functional Length (LF) | 3.937″ | Coolant Entry Thread Size (CNT) | NPT1/8 |
| Head Length (LH) | 0.768″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
