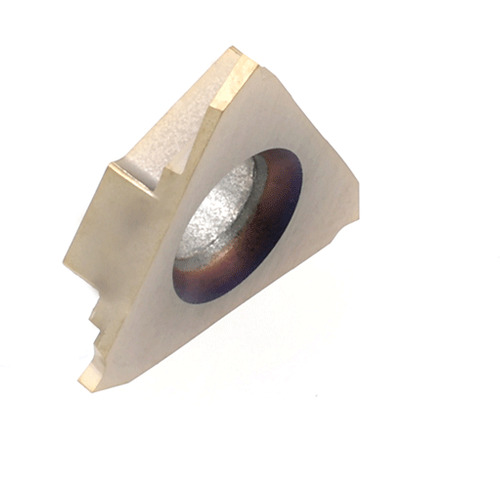

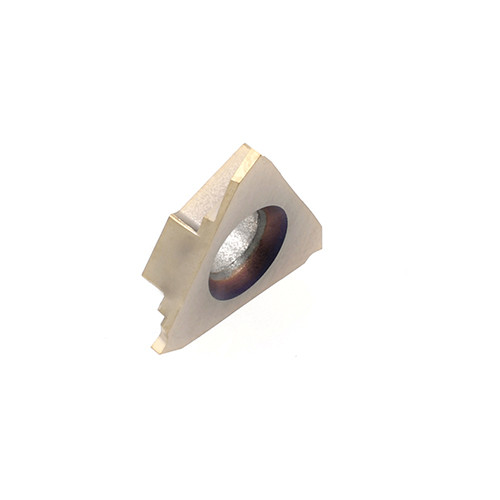

GTMX32250RT01 QM3
Grooving Insert; 0.098″ CW × 0.118″ Max Depth × 1/8″ Thickness × 3/8″ IC ; Carbide ; QM3 ; TiCN

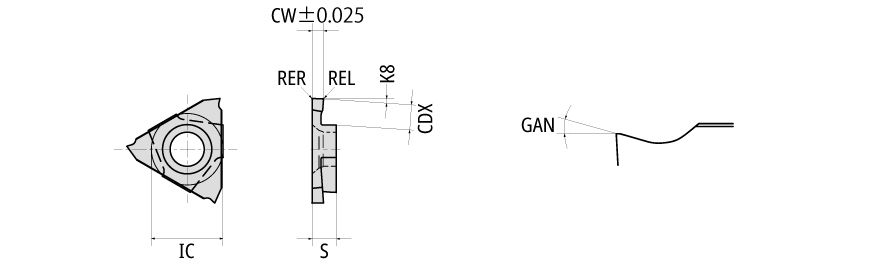

| Cutting Width (CW) | 0.098″ | Grade | QM3 |
| Cutting Depth Maximum (CDX) | 0.118″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 1/8″ | Application | | Inserts for miniature | |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Rake Angle (GAN) | 14 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Country of Origin | Japan |
