CCGT32.504MCL DT4

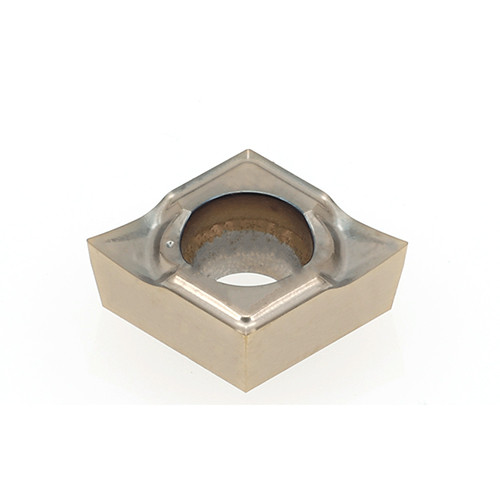

Turning Insert; CCGT32504MCL DT4
| Applicable Material | | Steel | Stainless Steel | | Cutting Edge Material | Carbide |
| Application | | Inserts for miniature | | Coating | TiAlN |

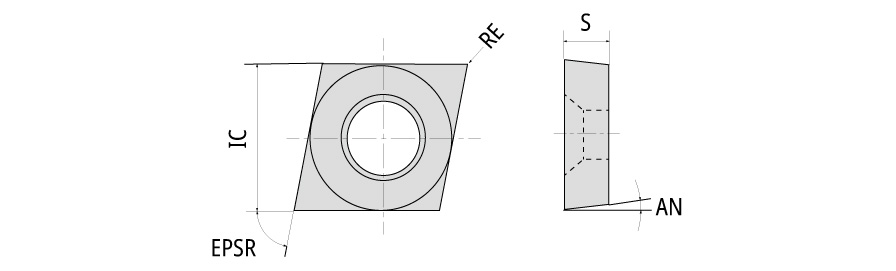

| Corner Radius (RE) | 0.0031″ | Grade | DT4 |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Body Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.2
