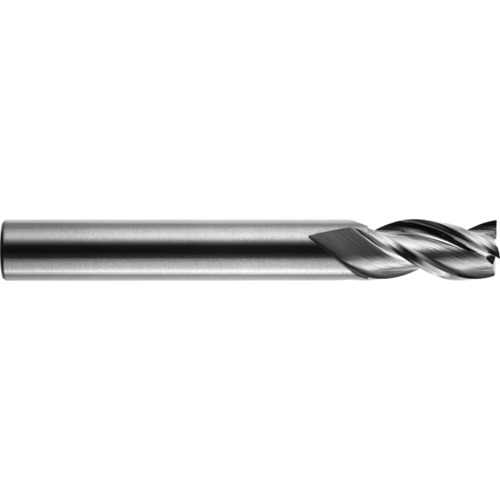

MA1-303-05 5MM DIA 3-FLUT
Chamfer End Mill; 5 mm Dia. × 14 mm LOC × 5 mm Shank Dia. × 50 mm OAL ; 3 FL ; Uncoated ; Series MA1-303
| Cutting Diameter (DC) | 5 mm | Flute Helix Angle (FHA) | 35 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5 mm | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 14 mm | Corner Chamfer Width (CHW) | 0.1 mm |
| Overall Length (OAL) | 50 mm | Tool Type | Solid Carbide Endmill |
| Coating | Uncoated | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | MA1-303 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
