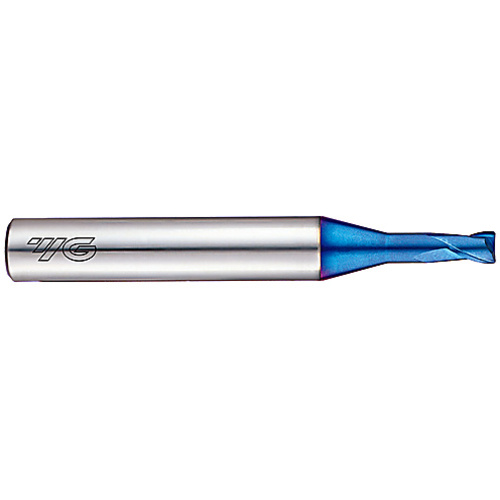

Square End Mill; 2 mm Dia. × 3 mm LOC × 4 mm Shank Dia. × 55 mm OAL ; 2 FL ; Carbide ; Blue Coating ; Series G8A45
| Cutting Diameter (DC) | 2 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 20 mm |
| Depth of Cut Maximum (APMX) | 3 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 55 mm | Decimal Equivalent | 0.0787″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiSiN | Series/List # | G8A45 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.519685039
Package Width
0.511811024
Package Height
0.511811024
Package Weight
0.015
